Induced Draft Mist Cooling Tower (FILL LESS DESIGN)

Our Induced draft Mist cooling tower (IDMCT) has NO Fills inside. Here, we have combined the technology of Mist creation with Induced draft to achieve the desired effect WITHOUT HELP OF ANY FILLS. Water sprayed from Mist Creator Nozzles in the form of fine mist particles provides a huge surface area exposed to air for heat and mass transfer. Air shall come in contact with the fine mist water particles in counter-current direction and thus desired water cooling is achieved. This completely solves the problem of maintenance in cooling tower system as any quality of water could be easily handled by our Induced draft Mist cooling tower.

IDMCT is the only cooling tower of induced draft (counter current/cross flow) type which works with this combination of technology as explained above without use of FILLS/FINS.

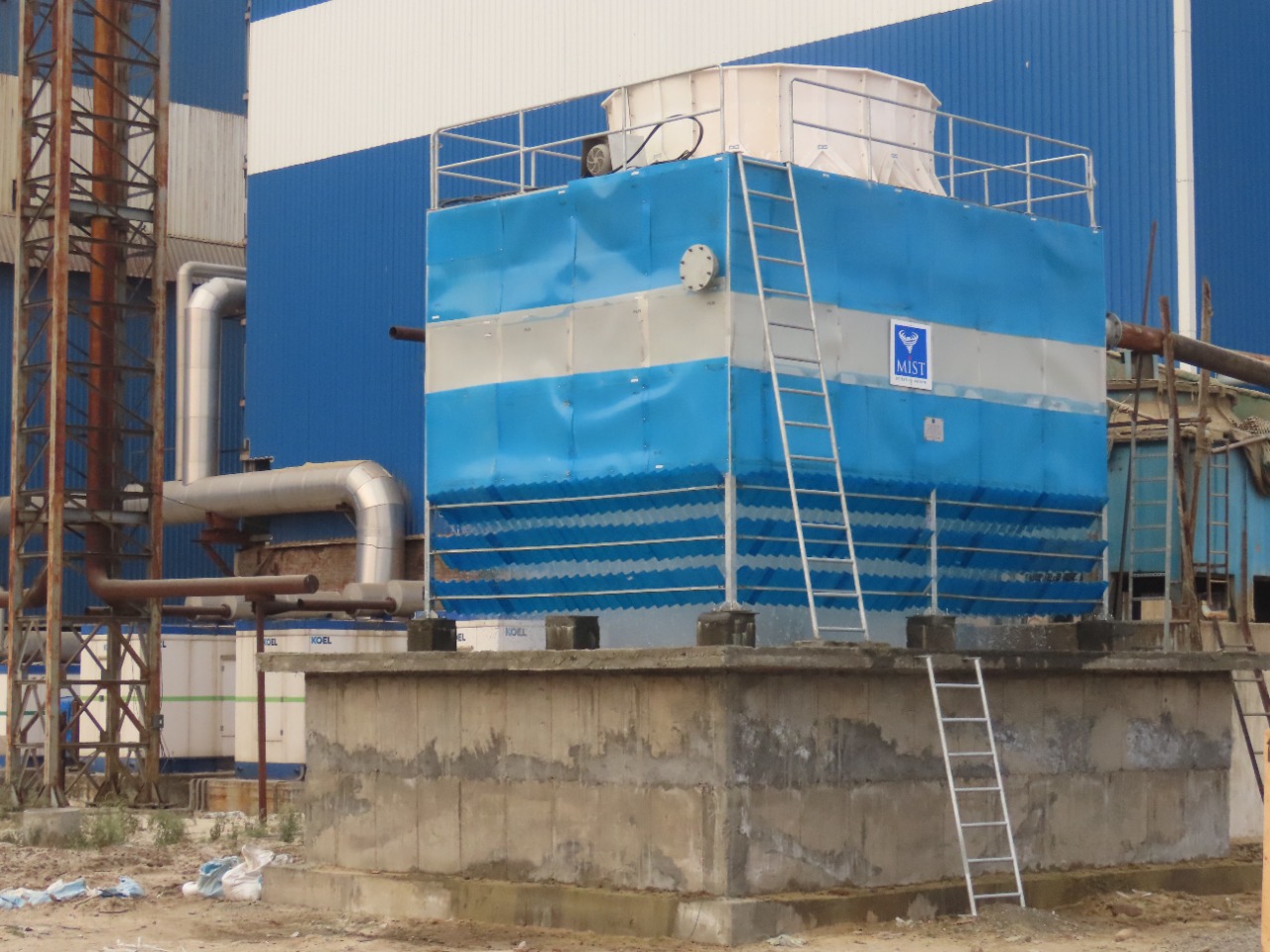

Induced Draft Mist Cooling Tower (IDMCT)

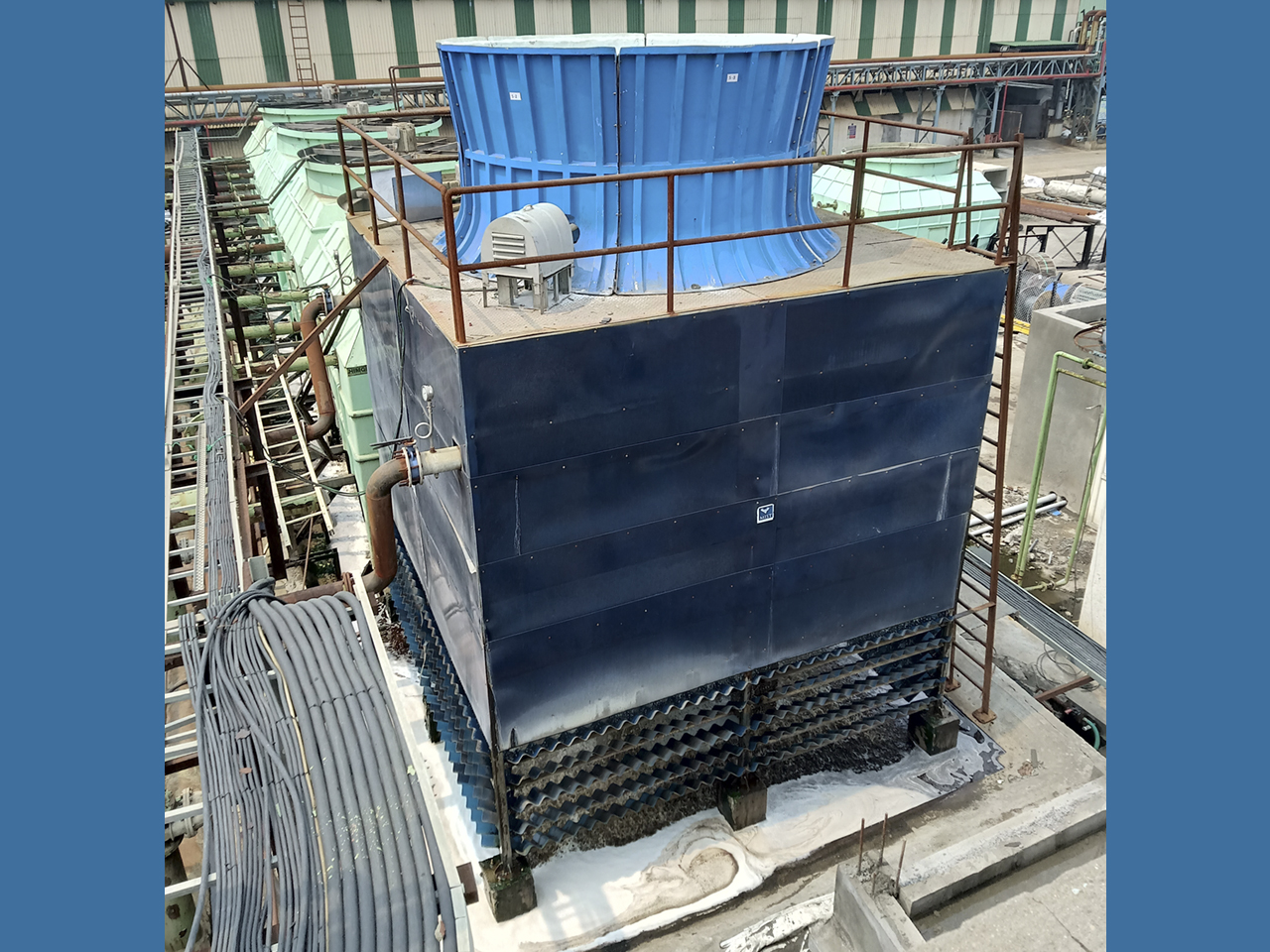

Induced Draft Mist Cooling Tower (IDMCT)

Special Features/ Advantages:

  • APPROACH AND TEMPERATURE DROP
    An approach of 3 to 4ºC is ensured to design WBT with a temperature drop up to 10°C.
  • FILL LESS OPERATION
    IDMCT does not require any Fills. The required surface area is obtained by creation of fine mist with an average particle size of 50 microns combined with induced air through small axial fans.
  • ENERGY SAVING
    Fan power required is reduced up to 50% due to combination of 2 technologies & minimum pressure drop across the system. This saves huge energy on cooling.
  • LIFE EXPENTANCY & MAINTENANCE
    Rugged structure with Pultruded FRP/ HDGI MOC and FRP casing with Stainless Steel 304 Nozzles, ensuring a life of 15 years plus. Choke less design of our Mist Creator Nozzles ensures a maintenance free operation for lifetime.
  • FOOTPRINT
    Footprint required is same as compared to Conventional IDCT.
  • OTHER FEATURES
    Due to use of latest drift eliminators, drift loss through IDMCT is limited upto 0.02%. Hence, Overall make-up water quantity is same as Conventional IDCT.
  • GAURANTEE
    Guaranteed designed performance even in summer & monsoon.
